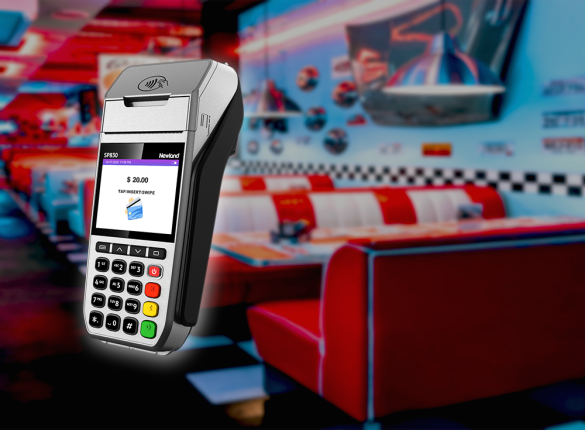

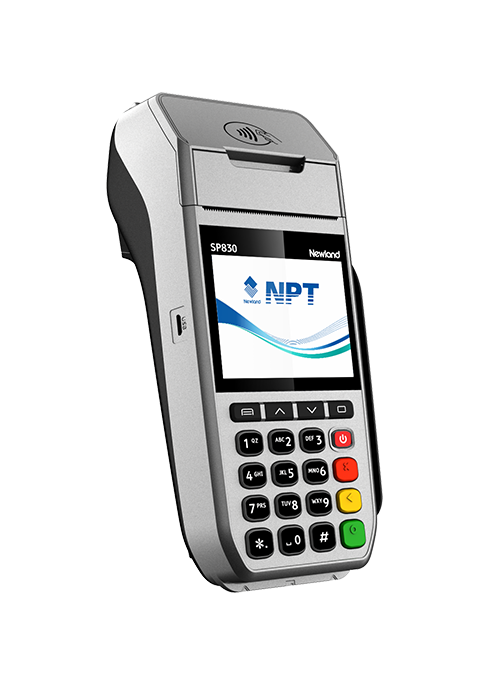

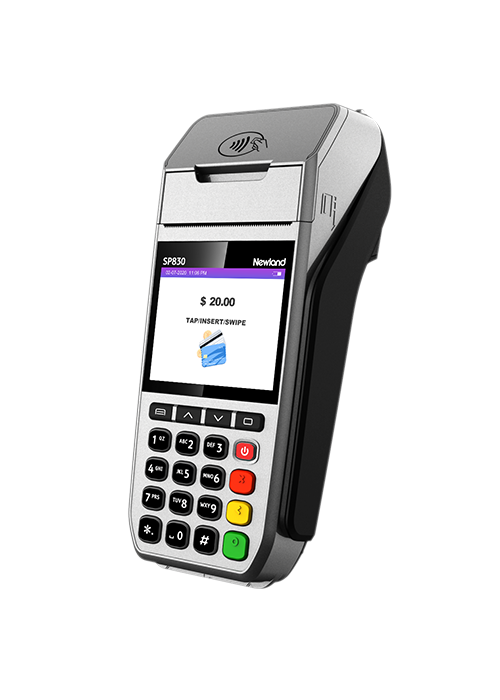

SP830
Countertop POS Terminal
With a high-performance secure processor and the large memory, the SP830 delivers an excellent user experience at the point of sale. Its communication connectivity and multiple extension options support the growing variety of payment demands required by today’s market as well as future proofing your investment.
Key Features
OS
Linux
CPU
Cortex-A9, 500MHz
Memory
128MB RAM, 128MB FLASH 128MB RAM, 256MB FLASH(Optional) MicroSD card (Optional, up to 32GB)
Display
2.8-inch TFT full color LCD display, resolution of 320*240 Resistive Touch screen, signature capture (Optional)
Wired Communication
Dial-up Modem; Ethernet 10/100 Base T
Wireless Communication
2G,3G,WIFI(802.11 b/g/n)
Card Reader
Mag-stripe card, Chip card, NFC
Printer
High-speed thermal printer, 32lps Paper roll diameter: 50mm Paper width: 58mm
Peripheral Ports
1 x RS232, 1 x Pinpad, 1 x USB-A (Host), 1 x MicroUSB (OTG), 1 x Line, 1 x Tel, 1 x Ethernet
Card Slots
2 SAMs 2 x SAM，1 x SIM(optional) 1 x SAM，2 x SIM(optional)
Audio
Built-in buzzer Built-in Speaker, support audio prompt(Optional)
Accessories (Optional)
Stylus (Optional)
Power Supply
Input: 100~240VAC 50/60Hz, 0.7A Output: 9.0VDC, 2.5A
Dimensions
190mm (L) x 82mm (W) x 68mm (H)
Weight
350g
Environment
Operating temp: 0℃～40℃ Storage temp: -20℃～60℃ Relative humidity: 5%～93% (Non-condensing)
Certifications
PCI PTS 5.x, EMV L1/L2/CL1 PayPass, PayWave, CE, ROHS, TQM, AMEX, Expresspay
