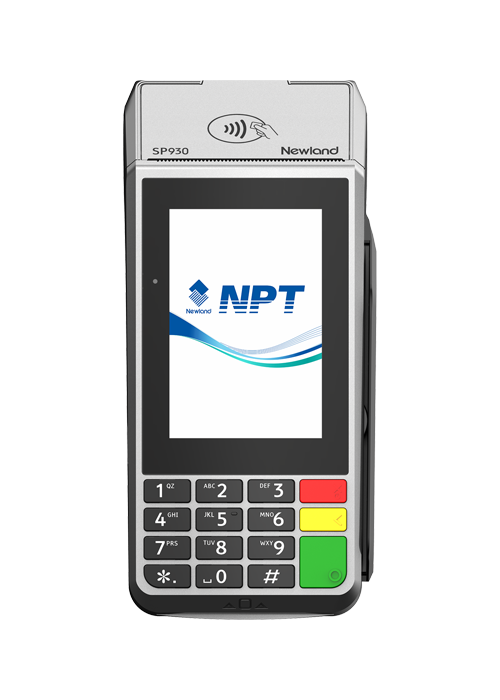

SP930
Mobile POS Terminal
A durable and easy-to-use mobile terminal, with a large capacitive touchscreen and powerful communication capability, the SP930 offers multiple solutions and business opportunities to users and satisfies the vertical applications required by today's growing market demands.
Key Features
OS
Linux
CPU
Cortex-A7, 1.2GHz
Memory
256MB FLASH, 256MB DDR MicroSD (Optional, up to 32GB )
Display
3.5-inch TFT full color LCD display resolution of 320*480 Capacitive screen, signature capture
Wireless Communication
2G 3G or 4G (optional) WIFI (optional) Bluetooth 4.2 (Optional)
Card Reader
Mag-stripe card, Chip card, NFC
Printer
High-speed thermal printer, 32lps Paper roll diameter: 40mm Paper width: 58mm
Peripheral Ports
1 x DC Jack, 1 x Micro USB (OTG)
Card Slots
2 SAMs 2 SIMs (1 sim with MicroSD Model)
Audio
Built-in buzzer Built-in speaker, support audio prompt (Optional)
Battery
7.2V/2600mAh/18.72Wh
Power Supply
Input: 100~240VAC 50/60Hz, 0.3A Output: 5.0VDC, 2A
Dimensions
171mm(L) x79.5mm(W) x 59mm (H)
Weight
400g (with battery)
Environment
Operating temp :0℃～40℃ Storage temp: -20℃～60℃ Relative humidity: 5%～93% (Non-condensing)
Certifications
PCI PTS 5.x, EMV L1/L2/CL1 PayPass, PayWave, CE ROHS TQM, ANATEL, ABCES, Expresspay
